Package scone.proxy

This package contains the classes related to the proxy.

See:
Description

Class Summary

AddPreambleEditor	Adds a preamble to a Html-Document.
FixContentTypeEditor2
GeneralResourceGenerator	This meg is able to return documents to the browser.
HtmlTokenEditor	The HtmlTokenEditor is a WBI MEG that allows for manipulating HTML documents in the HTTP-Response of the proxy.
NewServerRequestEditor	This meg is able to return documents to the browser.
NewServerResponseEditor
NoCacheMeg	The NoCacheMeg is a WBI MEG that adds "NoCache" command in the header of the response of a server.
PageTimeoutMeg	The PageTimeoutMeg is a WBI MEG that adds timeout commands to the header of the server response.
ParsingMeg	transforms tokens into database objects.
Proxy	the proxy class of the Scone framework.
ServerScoutLinkRewriter
ServerSide	This plugin enables the proxy to run as a web server

Package scone.proxy Description

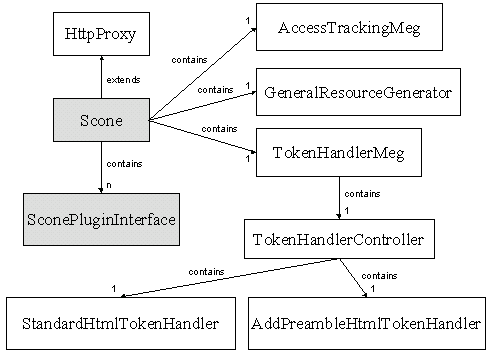

This package contains the classes related to the proxy. IBM's WBI is used as a proxy and scone is a WBI-plugin.

Scone basically analyzes the streams which flow through the proxy: The AccessTrackingMeg identifies users and logs their actions. The TokenHandlerMeg and its StandardHtmlTokenHandler (see TokenHandlerController for the TokenHandler-Framework) analyze HTML documents and create corresponding net-objects (see the scone.netobjects package documentation).

Scone also may contain SconePlugin objects and offers them the following services:

• HtmlTokenHandler objects may be registered to analyze or alter HTML documents
• SconePlugin objects may add new Strings to the AddPreambleHtmlTokenHandler object already registered at the TokenHandlerMeg
• The GeneralResourceGenerator maps URIs to local filesystem paths and returns the desired file. SconePlugin objects may add new mappings
• SconePlugin objects may register themselves at the caches of scone.netobjects to be notified when new objects have been extracted from HTML documents

SconePlugin objects are registered via the file scone/config/plugins.ini

This package also includes the Retriever class. This class can be used to fetch any document from the internet. It is designed especially for fetching and analyzing HTML documents.

example:

plugins.ini:

//leave exactly one space after plugin: !
plugin: scone.ObserverTest

scone/ObserverTest.java:

package scone;

import java.util.*;
import scone.netobjects.*;
import scone.proxy.*;

public class ObserverTest implements Observer, SconePluginInterface{

  public ObserverTest(){}

  //diese Methode ruft Scone bei allen plugins auf!
  public void init(Scone scone){
    //diesen Observer anmelden
    NetNodeCache.putObserver(this);
    HtmlNodeCache.putObserver(this);

    //alle 30 sekunden notifien
    HtmlNodeCache.setObservePeriod(1000*30);
  }


  //wir koennen davon ausgehen, dass o irgendein cache ist
  //und arg eine enumeration von netobjects...
  public void update(Observable o, Object arg){
    System.out.println("ObserverTest!");

    //yes, the NetNodeCache notifies us!
    if(o instanceof NetNodeCache){
      //just print all new NetNode objects to the screen
      for (Enumeration e = (Enumeration)arg; e.hasMoreElements() ;) {
        System.out.println("New NetNode: "+((NetNode)e.nextElement()).getUri());
      }
    }else{
      if(o instanceof HtmlNodeCache){
        //just print all new HtmlNode objects to the screen
        for (Enumeration e = (Enumeration)arg; e.hasMoreElements() ;) {
          System.out.println("New HtmlNode: "+((HtmlNode)e.nextElement()).getTitle());
        }
      }
    }
  }
}
